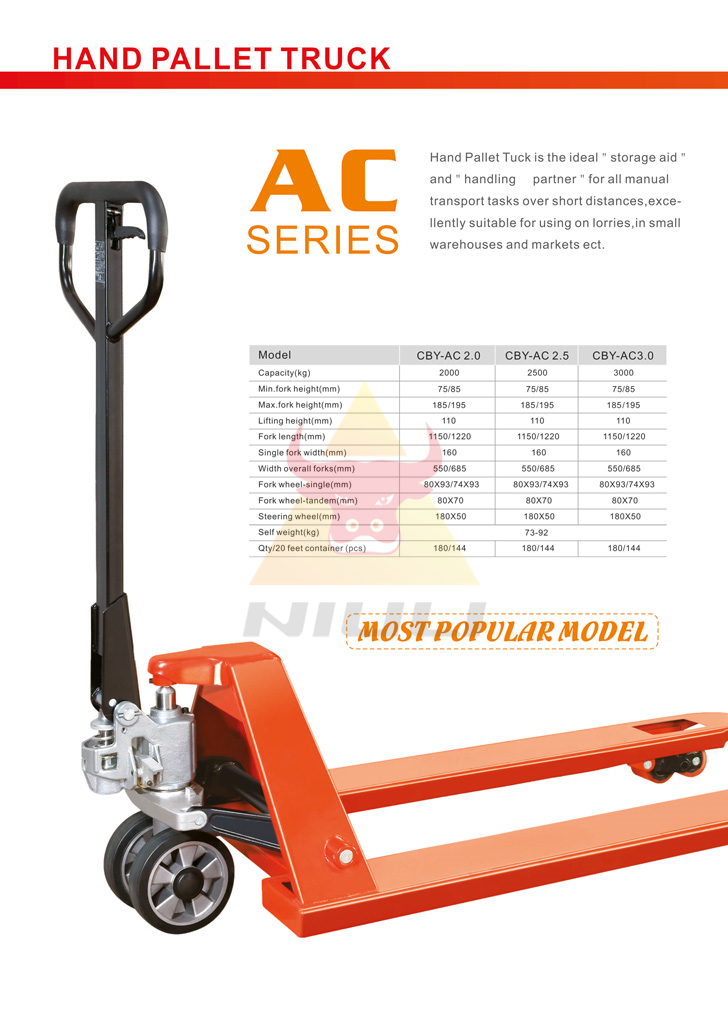

The Hand Parllet Tuck is the ideal " storage aid" and " handling partner " for all manual transport tasks over short distances,exce- llently suitable for use on lorries ,in small warehouses and markets ect .
AC Hand Pallet Truck
Product Name:AC Hand Pallet Truck
Product Detail
| Model | CBY-AC20 | CBY-AC25 | CBY-AC30 |
| Capacity(kg) | 2000 | 2500 | 3000 |
| Min.fork height(mm) | 65/75/85 | 65/75/85 | 65/75/85 |
| Max.fork height(mm) | 175/185/195 | 175/185/195 | 175/185/195 |
| Lifting height(mm) | 110 | 110 | 110 |
| Fork length(mm) | 1150/1220 | 1150/1220 | 1150/1220 |
| Single fork width(mm) | 160 | 160 | 160 |
| Width overall forks(mm) | 550/685 | 550/685 | 550/685 |
| Fork wheel-single(mm) | Φ64×93/Φ74×93/Φ84×93 | Φ64×93/Φ74×93/Φ84×93 | Φ64×93/Φ74×93/Φ84×93 |
| Fork wheel-tandem(mm) | Φ64×70/Φ74×70/Φ80×70 | Φ64×70/Φ74×70/Φ80×70 | Φ64×70/Φ74×70/Φ80×70 |
| Steering wheel(mm) | Φ160×50/Φ180×50/Φ180×50 | Φ160×50/Φ180×50/Φ180×50 | Φ160×50/Φ180×50/Φ180×50 |
| Self weight(kg) | 73-92 | 73-92 | 73-92 |
| Qty/20 feet container(pcs) | 180/144 | 180/144 | 180/144 |
